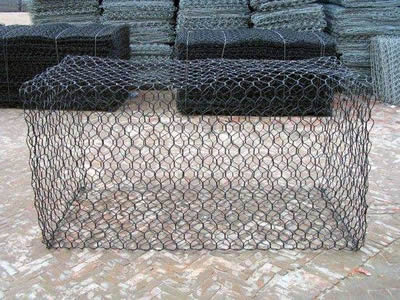

Gabion mesh is made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no PVC coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

Gabion materials are the following four types

• Galvanized steel wire: low carbon steel wire, wire diameter 2.0MM-4.0MM, wire tensile strength of not less than 380Mpa, hot dip galvanized steel to protect the surface, the thickness of the galvanized layer of protection according to customer requirements, plating the largest amount of zinc up to 300g / ㎡.
• Zinc - 5% (10%) of aluminum - mixed rare earth alloy steel wire, also known as Galfan steel wire, it is a new material emerging in recent years, corrosion resistance is three times more than traditional pure zinc, the wire diameter 1.0MM-3.0MM, wire tensile strength of not less than 380Mpa.
• Coated galvanized steel wire: high carbon steel wire, steel wire coated in a layer of PVC protective layer, and then woven into all kinds of wire mesh. This layer of PVC protective coating will greatly increase the protection of high pollution environment, and by the choice of different colors, so that it can and its surroundings.
• Zinc - 5% (10%) of aluminum - mixed rare earth alloy coated steel: -5% in the zinc (10%) of aluminum - mixed rare earth alloy wire coated with a layer of PVC protective layer, and then woven into all kinds of hexagonal . This layer of PVC protective coating will greatly increase the protection of high pollution environment, and by the choice of different colors, so that it can and its surroundings.

Gabion mesh Features:

• Economic. Just fill the stone into the gabions and seal it.
• Simple installation. No special technology needed.
• Weather proof under natural destroy, corrosion resistant.
• No collapse even under big scope of deforming.
• Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
• Good permeation can prevent the damage by hydrostatic.
• Less transport freight. It can be folded together for transport and further installation.
• Flexibility is good: no structural joints, the overall structure of scalability.
• Corrosion resistance: galvanized materials are not afraid of water.

Gabion boxes applications:

• Control and guide of water or flood.
• Flood bank or guiding bank.
• Preventing of rock breaking.
• Water and soil protection.
• Bridge protection.
• Strengthening structure of soil.
• Protection engineering of seaside area.

Anping Qinyao Wire Mesh Products Co., Ltd. is a leading company which does manufacturing and as well as export trade. Since its foundation, we have regarded producing the high-quality wire mesh products as the foundations of setting up ours own business of enterprises all the time, and treated improving product quality, promoting research and development ability as the developing direction of enterprises.

Qinyao recognizes that our customers are our future, and the success of our future lies in the consistent quality of service we must provide to each and every one of our customers every day.

Our company has over 160 sets of wire mesh machines which can manufacture any kind of wire mesh products. Over 200 skilled workers have been employed to guarantee the quality. We are specialized in Black Wire, Galvanized Iron Wire, PVC Wire, Stainless Steel Decorative Mesh, Stainless Steel Mesh Screen, Safety Window Screen, Fiberglass Mesh, Welded Wire Mesh, Welded Wire Mesh Panel, Chain Link Fence, Common Nails, Roofing Nails.

We have a good sales and management system, Most our products are exported to america, south america, The middle east and southeast asia.
