    Barbed Wire

    Ask Lasest Price
    Brand Name : QY
    Price : contact with me for update
    Payment Terms : T/T
    Supply Ability : 15tons/day
    • Product Details
    • Company Profile

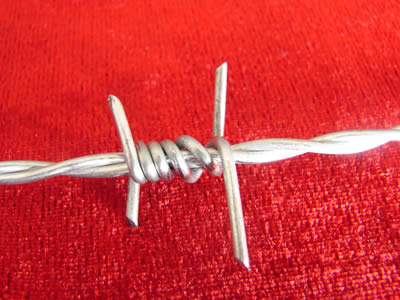

    Barbed Wire

    Products information: Barbed wire twisted and weaved by high quality galvanized wire and PVC wire.

    Feature: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

    Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.

    Patterns available: Single Twisted Barbed Wire/ Double Twisted Barbed Wire/ Traditional Twisted Barbed Wire.

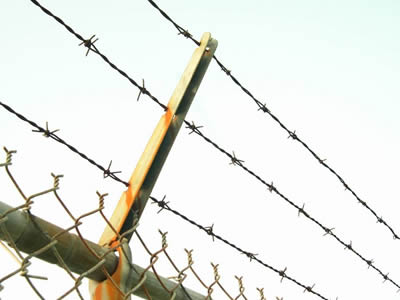

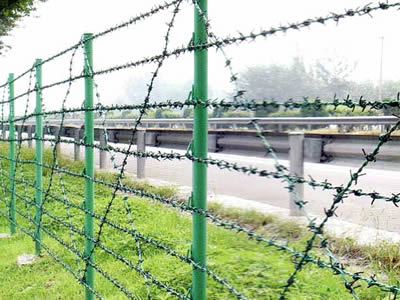

    Application: Barbed wire mainly used in protecting of grass boundary, railway, highway, wine, prison, etc.

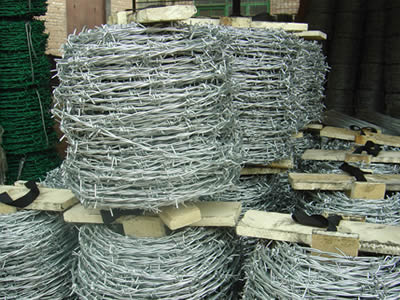

    Packing: Plastic inside, hessian outside Plastic inside, waving bag outside

    1. In nude;
    2. In iron axletree;
    3. In wood axletree;
    4. In wood pallet.

    Specifications of Barbed Wire
    Gauge of
    Strand and Barb in B.W.G.
    Approximate Length per kilogram in Meter
    Barbs Spacing 3"Barbs Spacing 4"Barbs Spacing 5"Barbs Spacing 6"
    12x126.06176.75907.27007.6376
    12x147.33357.90518.30158.5741
    12-1/2x12-1/26.92237.71908.30228.7221
    12-1/2x148.10968.8149.22429.5620
    13x137.98088.8999.572110.0553
    13x148.84489.689910.292310.7146
    13-1/2x149.607910.613411.470511.8553
    14x1410.456911.659012.542313.1752
    14-1/2x14-1/211.987513.367114.378115.1034
    15x1513.892715.494216.666617.5070
    15-1/2x15-1/215.349117.114418.406019.3386
    Barbed Wire Specification
    TypeWire Gauge (SWG)Barb Distance (cm)Barb Length (cm)
    Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire10# x 12#7.5-151.5-3
    12# x 12#
    12# x 14#
    14# x 14#
    14# x 16#
    16# x 16#
    16# x 18#
    PVC coated barbed wire; PE barbed wirebefore coatingafter coating7.5-151.5-3
    1.0mm-3.5mm1.4mm-4.0mm
    BWG11#-20#BWG8#-17#
    SWG11#-20#SWG8#-17#
    PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
